If you are adding a workgroup using Oracle as your database type, please perform the procedure outlined in the Using Oracle 8i (or later) Database Help section. Once you have completed these steps, return to this section and follow the procedure listed below.

Click on the Add button on the Button Bar to add a new workgroup. You will be prompted to fill in the following fields in order to create the new workgroup:

• Name
  A brief name to identify the workgroup. Example: productX

• Description
  A description of the workgroup.

• Location
  The path where the workgroup files will be located. We recommend you maintain this directory to be within your installation directory. By default, the installation directory is C:\Inetpub\wwwroot\ProblemTracker. WMS will create a directory similar to the workgroup name under this location. Example: If the workgroup name is productX, and the location is C:\Inetpub\wwwroot\ProblemTracker, then WMS will create the following directory C:\Inetpub\wwwroot\ProblemTracker\productX and create workgroup files under this directory.

• Template
  Select the template type that corresponds to the environment where ProblemTracker will be used. Each template comes with a basic set of fields and workflow steps modeled for the environment where it will be used. The following templates are available:
  • Software Development
    The Software Development template is intended for a code development process. An explanation is available in the Software Development template section of the Administration Help Guide.

  • Web Site Development
    The Web Site Development template is intended for a web site development process. An explanation is available in the Web Site Development template section of the Administration Help Guide.

  • Knowledge Base
    The Knowledge Base template is intended for the process of publishing articles to a searchable Knowledge Base available to external users. An explanation is available in the Knowledge Base template section of the Administration Help Guide.

  • Help Desk
    The Help Desk template is modeled for a process where internal users are supported by a Help Desk. An explanation is available in the Help Desk template section of the Administration Help Guide.

  • Support
    The Support template is geared for a process where external users are supported by a Customer Support team. An explanation is available in the Support template section of the Administration Help Guide.

• Database Type
  Select the database type for this workgroup from the pulldown menu options. Access, SQL Server, and Oracle database types are supported. If you are adding a workgroup using Oracle as your database type, before adding a new workgroup please perform the procedure outlined in the Using Oracle 8i (or later) Database Help section. Once you have completed these steps, return to this section to create a new workgroup using Oracle as the database type.

• Web Site
  Select the web site where the workgroup should be installed.

• Require SSL
  Check the box for this option if you have configured SSL (Secure Socket Layer) on the web site selected above. Please ensure you have entered a valid Server Certificate on your web server in order to apply the Secure Communications feature to your workgroup. Enabling this option will require your users to use https:// instead of http:// when browsing to this workgroup.

• Host Name or IP Address
  Select the radio button to specify either Host Name or IP Address that corresponds to the web site selected for the workgroup. This information will be used to configure the URL used to access this workgroup.

• Port Number
  If applicable, enter the port number associated with the web site you selected above. This information will be used to configure the URL for this workgroup.

• Comment
  This field can be used to add any information to describe the new workgroup.

1. Character Set
   ISO-8859-1, Windows-1252, and UTF-8 are the character sets that are supported by ProblemTracker.

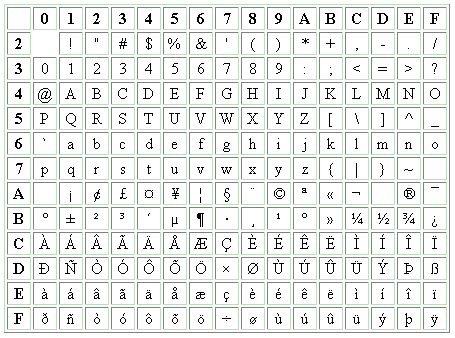

   • ISO-8859-1 (also known as Latin1) is a standard single-byte character set that supports Western European languages including: English, Basque, Catalan, Danish, Dutch, Finnish, French, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Scottish, Spanish, and Swedish. The ISO-8859-1 character set is a subset of the Windows-1252 character set. The image below displays the set of characters supported by ISO-8859-1.

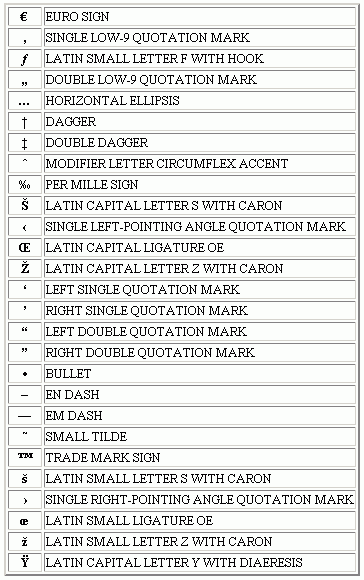

   • Windows-1252 is a single-byte character set that supports all of the characters in ISO-8859-1, plus some additional European characters including: the Euro sign, tilde, caron, and per mille. The image below displays the additional characters which are in Windows-1252 (but are not in ISO-8859-1). If you require the use of any of these characters, then you can not use the ISO-8859-1 character set.


   • UTF-8 supports virtually all available languages. It includes support for all Western European languages mentioned above for ISO-8859-1 and Windows-1252 as well as other languages such as Arabic, Chinese, Czech, Greek, Hebrew, Hindi, Hungarian, Japanese, Korean, Polish, Romanian, Russian, Tamil and many others. UTF-8 is an ASCII compatible encoding method for Unicode (ISO 10646). It is not supported by Internet Information Server (IIS) 4.0 (the Microsoft web server on NT 4.0) and will not be included as an option if you installed ProblemTracker on Windows NT.

   Even though UTF-8 supports the widest range of languages, it requires Windows 2000 Server and each user must have all of the necessary fonts installed on their desktop (web browser) machine in order to view all characters. Also, UTF-8 generally uses slightly more processor power at both web server and browser. If you are confident that the workgroup will only require English or another Latin1 language that does not require the special characters in the Windows-1252 character set (e.g. Euro symbol), then you should use ISO-8859-1. If you are using a Latin1 language and require one of the special symbols in Windows-1252, then you should use Windows-1252 as the character set. If you are not using a Latin1 language (or expect to add use of a non-Latin1 language to this workgroup in the future), then you should use UTF-8.

   When selecting the character set for your workgroup, you should also consider the users that will be accessing the workgroup. Each user account has a set of profile information that is displayed within each workgroup. Each user account has a character set, which is based on the characters used in the user account's profile information. The User Character Set must be compatible with the workgroup character set. For example, a user account with UTF-8 characters in its profile can only be given access to a workgroup with UTF-8 configured as the workgroup character set.

   Some basic guidelines related to user / workgroup character set compatibility:

   • If a user account contains only ASCII characters (supported by ISO-8859-1 character set), this user account can be given access to any workgroup because all character sets support ASCII characters.
   • If a user account contains non-ASCII characters supported by the Windows-1252 character set, this user account can be given access to any workgroup that is configured with the Windows-1252 or UTF-8 character set.
   • As mentioned above, if a user account contains non-ASCII characters only supported by the UTF-8 character set, this user account can only be given access to a workgroup configured with the UTF-8 character set.

   To view a user's character set, use the Edit a User operation in the License Administration section.

2. Email Header Encoding
   Email headers must contain only US-ASCII characters. Headers that contain non US-ASCII characters must be encoded so that they contain only US-ASCII characters. This process involves using either B (Base 64) or Q (Quoted-Printable) to encode certain characters. The Q encoding is recommended for use when most of the characters to be encoded are in the ASCII character set; otherwise, the B encoding should be used. If you select Auto, ProblemTracker will automatically select an encoding option.

3. Add Multipart Email
   This option determines whether the emails generated by ProblemTracker will contain text or text and HTML within the messages. Selecting Yes for this option will allow the emails to contain both text and HTML. For example, if you selected UTF-8 as the character set for a workgroup, email generated by ProblemTracker may also contain UTF-8 characters. If your email client cannot display UTF-8 characters, selecting Yes for the Email Add HTML Part option might help. With this option enabled, ProblemTracker will send email with both text and HTML format. If your email client can display HTML format, UTF-8 email can be displayed.

4. Time Zone
   This option determines which time zone will be selected for users by default to view the workgroup data. Irrespective of the setting you choose for the default here, each user can select their own time zone setting in the Personal Preferences section. For a list of available time zones in your operating system, please refer to one of the following sections:
   Windows 2003 / XP / 2000 Time Zones
   Windows NT 4.0 Time Zones

5. Adjustment for Daylight Saving Time
   This option determines whether the workgroup date is adjusted to observe daylight saving time. If you have selected a time zone that observes daylight saving time, it is recommended that you check the box to enable ProblemTracker to make the appropriate adjustments.

Once you have entered the relevant information to create the new workgroup, click the Continue button.

If you selected SQL Server or Oracle as the database type, you will be prompted to provide additional information about the database:

• Database Name
  By default, this will display the name selected as the workgroup name. You can change this in the space provided.

• Location (Server)
  Enter the name of the machine where SQL Server or Oracle is located.

• User Name
  Enter the user name to be used to connect to SQL Server. It will be "sa" by default. You will not be prompted for user name if you have chosen Oracle.

• Password
  Enter the password for the user name specified above to connect to SQL Server. If you are using the login "sa", this will be blank by default. You may need to check with your system administrator if the password has been changed. You will not be prompted for the password if you have chosen Oracle.

• Physical Path
  This option is only used when SQL Server is selected as the database type. Enter the location of the database files within SQL Server. You can click on the Get Data button to connect to the SQL Server and automatically get the physical path. If the Get Data operation is not successful, check with your system administrator since the path depends on what was chosen during the SQL Server installation, and enter the appropriate path. If the path you entered is not synchronized with the SQL Server installation path, you might get an error while creating the workgroup.

Click on the Continue button to proceed with creating the workgroup.

A Component Check will be done to validate the information entered for the new workgroup. If the Component Check is successful, a confirmation of the database information will be shown. If the Component Check is unsuccessful, details about the components that failed will be listed. If you wish to save the settings you entered above to be displayed as the default settings whenever adding future new workgroups, check the box labeled Save as default settings. You can click on the Back button to make any modifications to the database information. Otherwise, click on the Create Workgroup button as the final step to create the workgroup.

If you selected SQL Server or Oracle as the database type, click on the Initialize Tables button that appears after the workgroup has been created.

To login to your new workgroup, go back to the Workgroup Management System Home Page, find the name of the workgroup you added, then click on the key icon to the left of the workgroup name. A separate window will be launched with the Login page for your workgroup. Or, you can launch a browser window and enter the following URL to reach your workgroup:

http://servername/workgroupname/

where servername is the TCP/IP host name of the machine where you installed ProblemTracker and workgroupname is the name of the workgroup you created.
